 The Radio Room is located in the County 911 Operations
Center. The room has been remodeled adding workstations and lockable
wall and floor cabinets. There are 4 multiband commercial antennas
installed on the roof allowing 2 meter, 440 MHz and 220 MHz
communication.
In September 2006, two Alinco 220 radios with packet
boards were added for operation with the Hospital Packet network.
The Radio Room is now functional on:
- 2 Meter voice (3 radios)
- 144/440 MHz packet (1 radio)
- 220 voice/packet (2 radios)
- 440 voice (1 radio)
- LAN with Internet and shared Printer/Scanner/Fax.
- ATV receive station (1277.25 MHz)
Upgrades:
- New Dell P4 computers and 19" LCD Monitors
- 15" TV monitor and 1.2 GHz down converter for ATV reception
- Kenwood TMV-71 dual band radio and KPC3+ TNC for district packet
Future plans:
- Add an HF antenna system to the current antenna
installation
 |

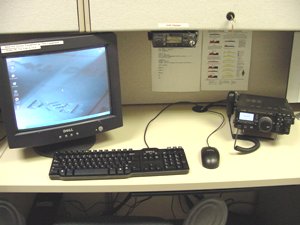

The updated radio room with new computers and ATV |
| |
|
 |
Station 1
VHF, UHF, 220 Voice/Packet |
| |
|
 |
Station 2
VHF packet, HF, ATV |
| |
|
 |
Station 3
VHF/UHF, 220 Voice/Packet |
| |
|
| September 2006 install photos |
|
 |
The new radio room |
| |
|
 |
Jeff installing one of the radios |
| |
|

|
Ron Testing things out. |
|
